The simplest equivariant jerk system

Jean-Marc MALASOMA
29/01/2008


- The system

A jerk system is a nonlinear dynamical system which can be rewritten under a canonical form, that is, as a function of one of its dynamical variables and its successive derivatives. Jean-Marc Malasoma proposed the simplest equivariant jerk system reading as [1]


  \displaystyle
  \left\{
    \begin{array}{l}
      \dot{x} = y \\
      \dot{y} = z \\
      \dot{z} = - \alpha z + x y^2 - x \\
    \end{array}
  \right.

where y=\dot{x} and z=\ddot{x}. This system is equivariant, that is, it obeys to the relation  \gamma \cdot \mb{f} (\mb{x}) = \mb{f} (\gamma \cdot \mb{x}) where \gamma is a 3 \times 3 matrix defining the symmetry properties. In the present case, the \gamma-matrix


  \gamma =
  \left[
    \begin{array}{ccc}
      -1 & 0 & 0 \\
      0 & -1 & 0 \\
      0 & 0 & -1
    \end{array}
  \right]

defines an inversion symmetry {\cal P}. It means that the vector field \mb{f} is invariant when (x,y,z) are mapped into (-x,-y,-z). This simplest equivariant jerk system has a single fixed point F_0 located at the origin of the phase space. It is a saddle-focus with one negative real eigenvalue and two complex conjugate eigenvalues with positive real part. With \alpha = 2.027717, a chaotic attractor is obtained.

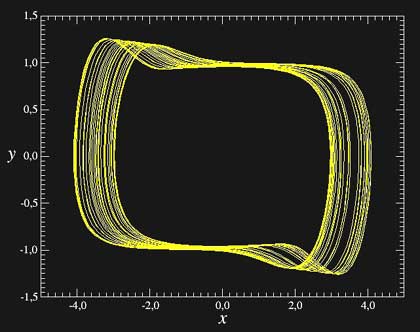

Chaotic attractor solution to the simplest equivariant jerk system

This system was investigated in terms of its image, that is, under the two-to-one mapping allowing to obtain a projection of the dynamics without any residual symmetry [2]. The inversion symmetry of the simplest equivariant system is therefore modded out. The bifurcation diagram can be thus predicted from the unimodal order although the first-return map computed in the original phase space exhibits three critical points. This feature is the same than the one observed on the Burke & Shaw system although this latter system has a rotation symmetry.

[1] J.-M. Malasoma, What is the simplest dissipative chaotic jerk equation which is parity invariant?, Physics Letters A, 264, 383-389, 2000.

[2] C. Letellier & J.-M. Malasoma, Unimodal order in the image of the simplest equivariant jerk system, Physical Review E, 64, 067202, 2001.
